Phenolic cotton cloth tube has excellent electrical insulation, strong mechanical strength.
Phenolic cotton cloth laminated tube product introduction:
Product parameters
Color: Brown
Wall thickness: ≥2.5mm
Size: d≤Ф50 Ф50-100 d≥Ф100 d≤Ф50 2mm Ф50-100 d≥Ф100 customize
Heat resistance rating: Class E
Density: 1.2-1.3

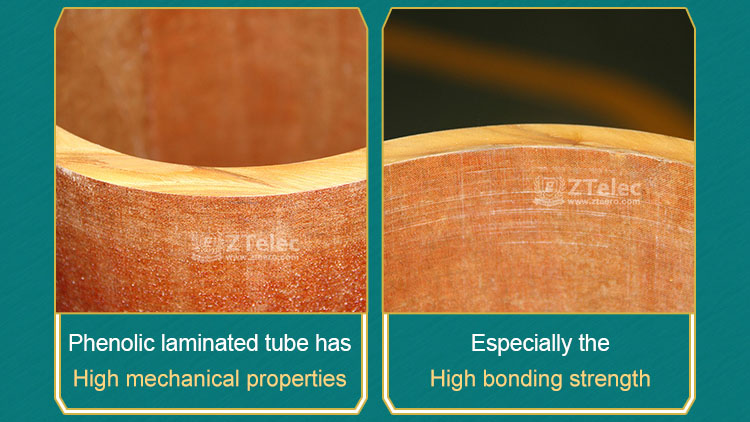

phenolic resin cotton cloth tube is tube-like laminated products, which is made of special cotton cloth impregnated with phenolic resin, and then rolled, baked and cured under heat and hot pressing.
It has excellent radial tensile strength, good mechanical strength and low water absorption. The insulation class is E class and the main color is coffee.
Application of 380 Phenolic Resin Cotton Cloth Tube
It is suitable for sealing ring, cages for bearing and other wear-resistant spares.
Advantage of 380 Phenolic Resin Cotton Cloth Tube
380 phenolic resin cotton cloth tube, produced by ZTelec Group using phenolic resin as raw material, can be mass-produced with advanced production equipment and automatic production line.
This product has the advantages of reliable quality, uniform color and neat cutting ends with strict manufacturing technology.
ZTelec Group is equipped with advanced ventilation facilities and dust-removing equipment to keep the products dry and clean.
The mechanical and electrical properties of products are superior to the similar one of other companies.
Its quality is recognized by domestic and foreign large enterprises such as Lens Technology in China and Schneider Electric and sold overseas such as European and American areas.

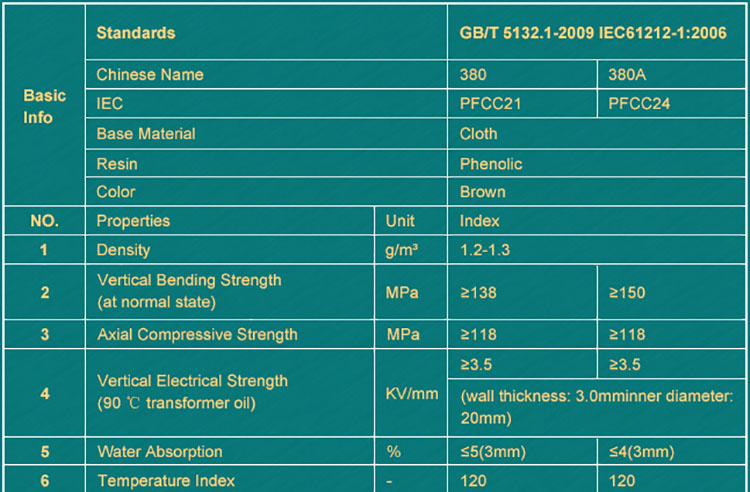

Product Specification of 380 Phenolic Resin Cotton Cloth Tube
| Name | Unit | Value |
| Minimum Wall Thickness | mm | 2 |
| Maximum Wall Thickness | mm | 200 |
| Minimum Bore Size | mm | 10 |
| Maximum Bore Size | mm | 1200 |
| Length | mm | 1000 |
